How Should You Interpret a Hydraulic Oil Analysis?

Hydraulic oil should be sampled and analysed regularly, either by an in-house laboratory or a specialist testing provider. The results reveal fluid cleanliness, ageing, wear trends and external contamination, helping maintenance teams assess hydraulic-system condition, identify developing faults and plan corrective action.

Article Navigation

Select a chapter below for quick access.

The Two Main Branches of Oil Analysis

Laboratory analysis of hydraulic oil to assess contamination and oil condition

Both branches are essential for understanding what is happening in the oil and in the hydraulic system.

Chapter 01 | Particle Analysis and ISO 4406 Cleanliness Codes

ISO 4406 comparison chart for particle contamination levels and hydraulic-oil cleanliness
Particle Contamination in Hydraulic Oil

Particle analysis determines how many particles are present in defined size classes. This is usually measured optically: the oil passes through a light beam, and the number and size of the shadows detected by a photocell determine the particle count in the sample.

For consistent comparison, oil cleanliness—or oil contamination, depending on the point of view—is classified according to ISO 4406. The standard assigns particle-count ranges to cleanliness code numbers, making results easy to compare and allowing maintenance teams to identify changes quickly.

As the table shows, the particle count doubles from one code range to the next. A reduction of one code number therefore means approximately half as many particles, while an increase of one code number means approximately twice as many.

ISO 4406 particle analysis uses three size ranges: >4 μm, >6 μm and >14 μm. This shows which particle-size range is improving or deteriorating and helps determine the appropriate corrective action.

Some laboratories also report additional ranges. For example, OELCHECK may include >21 μm, >38 μm and >70 μm, providing further clues about the composition and likely origin of particles in the oil.

Particles per 100 mL: fromtoISO code
250,000,000->28
130,000,000250,000,00028
64,000,000130,000,00027
32,000,00064,000,00026
16,000,00032,000,00025
8,000,00016,000,00024
4,000,0008,000,00023
2,000,0004,000,00022
1,000,0002,000,00021
500,0001,000,00020
250,000500,00019
130,000250,00018
64,000130,00017
32,00064,00016
16,00032,00015
8,00016,00014
4,0008,00013
2,0004,00012
1,0002,00011
5001,00010
2505009
1302508
641307
32646
16325
8164
483
242

Chapter 02 | Using Particle Trends to Assess Filtration and Abnormalities

The key question is whether particle counts are decreasing or increasing. Falling counts indicate that filtration is working effectively. If the particle load increases, one or more of the following causes should be investigated:

Chapter 03 | Chemical Analysis: Additives, Wear Metals and Contaminants

Hydraulic-oil chemical analysis covering additives, wear elements and contaminants

Compare Results with the Manufacturer’s Specification and Historical Trends

Chemical oil analysis normally groups the measured substances into three areas: additives, wear metals and contaminants. Every detected element can generally be assigned to one of these categories.

Additives in the Oil

Additives are substances blended into the oil to provide specific beneficial properties. An absolute value from a single analysis has little meaning if the initial value is unknown. The baseline can be obtained from the oil manufacturer or by analysing a sample of fresh oil. Additive levels should therefore always be compared with the baseline and with earlier samples to determine whether they are being depleted and whether corrective action is required.

Wear Metals in the Oil

Wear in a hydraulic system is reflected by elements such as iron, copper, tin and chromium. These materials originate from system components and enter the oil when parts wear or become damaged. Comparison with previous oil samples is essential for identifying trends. A sudden rise in a wear element can indicate which component is approaching failure or has already been damaged. Because many hydraulic pumps contain brass, for example, a marked increase in copper and zinc can point to pump wear or damage. A sharp increase in iron may indicate damaged valves or other ferrous components. In both cases, effective filtration is vital so that wear particles are removed before they cause secondary damage.

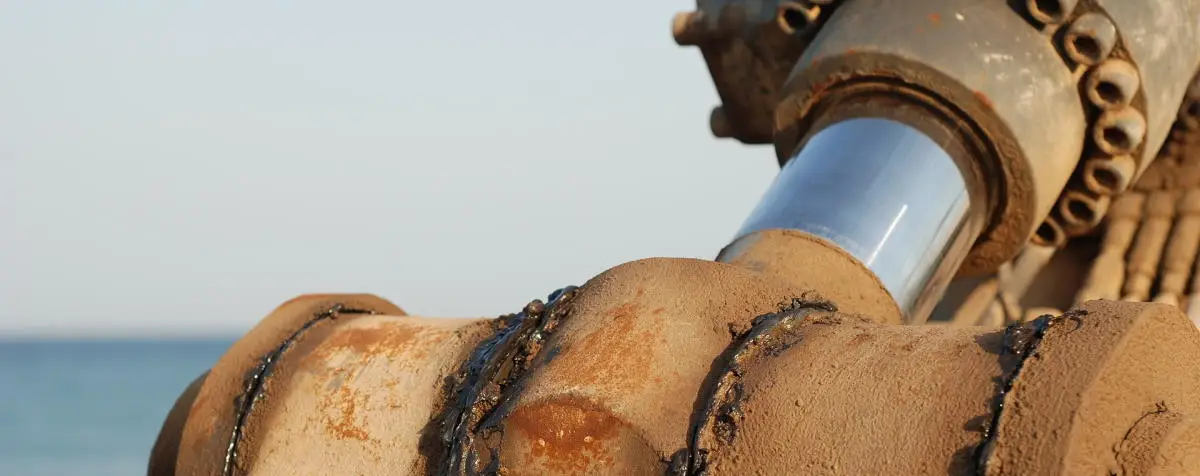

Contaminants in the Oil

Common contamination indicators include silicon, sodium, potassium and water. These contaminants often enter the hydraulic system through the air, either as dust and other particles or as moisture. Comparing current results with previous values is critical so that corrective action can be taken before hydraulic-oil performance deteriorates. A suitable breather or air filter on the hydraulic reservoir is essential for minimising the ingress of dust and moisture. Particle contamination accelerates component wear and can cause further system damage. Water in the oil can promote corrosion, rust in pipes and other parts, and cavitation in pumps.

Chapter 04 | Contamination Control, Filtration and Dehydration

Keep Contamination Indicators at a Low Level

Use an effective breather or air filter on the reservoir to keep moisture and particles out as air is drawn into the tank. If contaminants are already present in the oil, suitable filtration can remove the solid particles.

Conventional filters cannot remove water. Special water-absorbing filter media can capture free water, but their capacity is limited and they do not remove larger quantities of emulsified water.

Where the oil contains substantial free or emulsified water, a vacuum dehydration system can remove it efficiently and restore the fluid to a controlled moisture level.

Chapter 05 | Viscosity, Total Acid Number (TAN) and PQ Index

Key oil-analysis parameters used to assess hydraulic-oil condition and contamination

Oil Viscosity

Compare viscosity using the same test temperature and method against the correct fresh-oil baseline, historical trend and equipment and lubricant-supplier requirements. Do not treat ±5% as a universal alarm or oil-change limit for every hydraulic oil.

For a significant change, check sampling, oil identity, top-up and mixing records with the laboratory and lubricant supplier. Viscosity alone does not identify a specific fault, and filtration should not be assumed to restore it.

Total Acid Number (TAN)

TAN measures acidic constituents, and fresh oils can have different initial values. Interpret it with a fresh-oil baseline, consistent test methods, trends and other condition indicators rather than one absolute result.

If TAN continues to rise or reaches the maintenance limit applicable to the oil and equipment, investigate operating conditions, contamination and lubricant condition with the laboratory and supplier before selecting an action.

Method reference: Mobil on interpreting combined oil-analysis results and trends. This is general interpretation context, not a replacement for oil- and equipment-specific maintenance requirements.

Respond to abnormal TAN using the cause and the oil-condition assessment

Contamination control or purification can address only contaminants within the process capability. It does not restore depleted additives or aged base oil. Change the oil when required by the lubricant and equipment criteria, and investigate the conditions responsible for the abnormal result.

PQ Index (Particle Quantifier Index)

Some oil analyses report a PQ index. This value indicates the concentration of ferromagnetic wear particles in the oil and helps assess the composition of the particle load and identify which components may be wearing.

PQ index used to assess ferromagnetic wear-particle content in hydraulic oil

Chapter 06 | Conclusions and Maintenance Decisions

Read oil analysis together with equipment symptoms, sampling conditions and maintenance records to identify trends in contamination, wear and lubricant condition, then decide whether to repeat a sample, inspect the system or take corrective action.

Frequent failures, early ageing or high contamination do not establish inadequate filtration as the cause. Also investigate contamination ingress, water, mixing, temperature, mechanical condition and the operation of existing filters and bypass circuits.

Where compatible fine or soft contaminants are confirmed as the main problem, assess an electrostatic oil cleaning system. Assess dehydration separately for water. Use comparable before-and-after sampling and test methods to verify treatment performance; economic benefit also requires actual cost and operating records.

Results Reported in Specific FRIESS Applications

The figures below come from individual applications: the steel-mill EFR D8 case and the injection-moulding EFR D8 case. They are case results, not a performance guarantee. Results at another site depend on the oil, contamination, operating conditions and maintenance programme and should be checked using before-and-after oil analysis.

Reliable hydraulic systems depend on clean, particle-free oil and stable lubrication performance. Electrostatic hydraulic-oil cleaners remove fine and submicron contamination, helping extend oil and component life. The costs of replacement oil, waste-oil disposal and hydraulic-system failures can all be reduced substantially.

A comprehensive oil analysis establishes the condition of the hydraulic fluid and shows whether corrective action is required. Regular measurements before and after the oil cleaning system is installed also make the economic benefit measurable.
